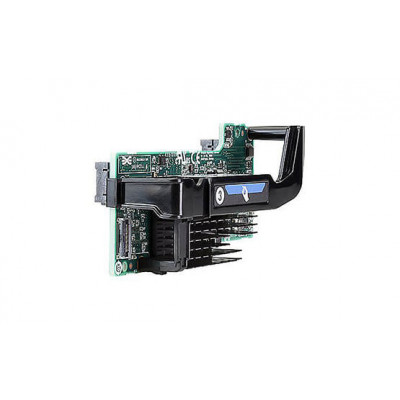

Адаптер HP FlexFabric 20Gb 2-port 650FLB FIO Adapter (700764-B21)
11 476 р.
Адаптер HP FlexFabric 20Gb 2-port 650FLB FIO Adapter (700764-B21) - HP flexfabric адаптер 20Gb 2-порта 650FLB устанавливается в разъем Flexiblelom до установки дополнительных Mezzanine адаптеров. Адаптер обеспечивает тоннеля разгрузку для эффективного наложения сетей для увеличения перевода виртуальных машин, гибкость и сети масштаба с минимальным влиянием на производительность сервера.
Основные характеристики:
- Network adapter
- PCI Express 3.0 x8
- 20 Gigabit Ethernet x 2
- factory integrated
- for HPE ProLiant BL460c Gen9
- BL660c Gen9
- WS460c Gen9
Технические характеристики:
| Humidity Range Operating: | 15 - 80% (non-condensing) |
| Max Operating Temperature: | 131 °F |
| Min Operating Temperature: | 32 °F |
| Type: | FlexibleLOM |
| Brand: | HPE |
| Compatibility: | PC , Unix |
| Manufacturer: | HP CTO Server Avnet |
| Model: | 650FLB |
| Packaged Quantity: | 1 |
| Product Line: | HPE FlexFabric |
| Qty: | 2 |
| Type: | 20Gb Ethernet |
| Compliant Standards: | BSMI CNS 13438 , CISPR 22 , EN 60950-1 , EN55022:2010 , EN55024:2010 , FCC CFR47 Part 15 , FCC Class A certified , ICES-003 , IEC 60950-1 , KN22 , KN24 , MSIP , RoHS 6/6 , UL , UL 60950-1:2007 , VCCI , WEEE |
| Pricing Type: | Factory integrated |
| Compliant Standards: | IEEE 802.1ab (LLDP) , IEEE 802.1p , IEEE 802.1Q , IEEE 802.1Qaz , IEEE 802.1Qbb , IEEE 802.1Qbg , IEEE 802.3ad (LACP) , IEEE 802.3ae , IEEE 802.3ap , IEEE 802.3x |
| Connectivity Technology: | Wired |
| Data Link Protocol: | 20 Gigabit Ethernet |
| Data Transfer Rate: | 20 Gbps |
| Features: | Extended Message-Signaled Interrupts (MSI-X) , Full duplex mode , Jumbo Frames support , Large Send Offload (LSO) , PXE support , QoS tagging , RDMA over Converged Ethernet (RoCE) , Single Root I/O Virtualization (SR-IOV) , TCP Segmentation Offload (TSO) , TCP/IP checksum offload , UEFI support , VLAN support , Wake on LAN (WOL) |
| Form Factor: | Plug-in card |
| Interface Type: | PCI Express 3.0 x8 |
| Network Transport Protocol: | TCP/IP |
| Remote Management Protocol: | SNMP |
| Type: | Network adapter |
| Qty: | 2 |
| Type: | 20 Gigabit Ethernet |
| Power Consumption Operational: | 7.6 Watt |
| Installed Qty: | 1 |
| Support Details Full Contract Period: | 1 year |
| Support Details Type: | Limited warranty |
| Type: | 1 year warranty |
| Total Qty: | 1 |
| Type: | Drivers & Utilities , HP Systems Insight Manager (HP SIM) |
| Min Operating System: | Citrix XenServer 6.5 , Microsoft Windows Server 2008 , Microsoft Windows Server 2008 R2 SP1 (64-bits) , Microsoft Windows Server 2012 , Microsoft Windows Server 2012 R2 , Red Hat Enterprise Linux 6.5 , Red Hat Enterprise Linux 6.6 , Red Hat Enterprise Linux 7 , Red Hat Enterprise Linux 7.1 , SuSE Linux Enterprise Server 11 SP3 x64 Edition , SUSE Linux Enterprise Server 12 x64 Edition , VMware ESXi 5.1 update 3 , VMware ESXi 5.5 update 2 |
