Коммутатор Cisco Catalyst ME-3400-24FS-A
91 551 р.

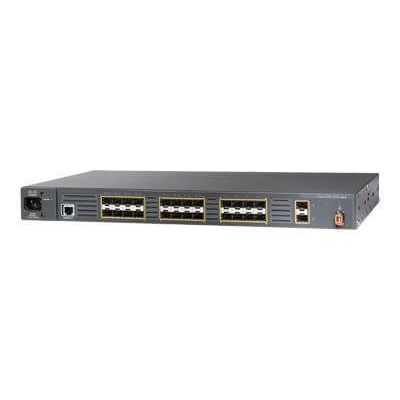

Cisco ME-3400-24FS-A - 24-портовый Ethernet 100 SFP коммутатор серии Cisco ME 3400 Series Ethernet Access Switches с дополнительными двумя SFP аплинками и блоком питания AC. Многоуровневый коммутатор высотой в один юнит (1-RU) обеспечивает скорость передачи 6,5 млн. пакетов в секунду (Мпак./с).
Технические характеристики
| Device Type | Switch - 24 ports - L3 - managed |
| Enclosure Type | Desktop - 1U |
| Interfaces | Fast Ethernet |
| Ports | 24 x SFP + 2 x SFP |
| MAC Address Table Size | 8K entries |
| Routing Protocol | OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, PIM-SM, static IP routing, PIM-DM |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3 |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Layer 3 switching, layer 2 switching, trunking, VLAN support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| RAM | 128 MB |
| Flash Memory | 32 MB flash |
| Status Indicators | Port status, system |
| Interfaces | 1 x console - RJ-45 - management 24 x SFP (mini-GBIC) |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Consumption Operational | 70 Watt |
| Compliant Standards | NEBS level 3, FCC Class A certified, TUV GS, CISPR 22 Class A, EN 60950, NOM, VCCI-I, IEC 60950, EN55024, EN55022 Class A, UL 60950 Third Edition, AS/NZ 3548 Class A, FCC Part 15, MIC, EN300-386, CSA C22.2 No. 60950 Third Edition |
| Approximate Width | 17.5 in |
| Approximate Depth | 9.5 in |
| Approximate Height | 1.7 in |
| Approximate Weight | 6.4 lbs |
| Min Operating Temperature | 32 |
| Max Operating Temperature | 122 |
| Humidity Range Operating | 5 - 95% |
