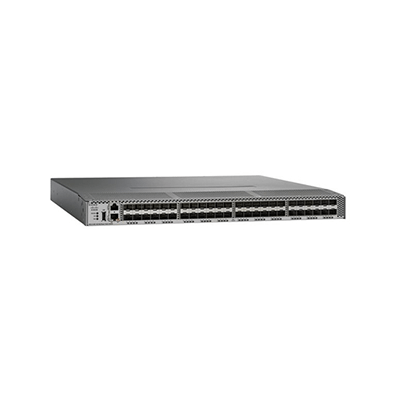

Коммутатор Cisco DS-C9148S-D12P8K9
286 813 р.
Коммутатор Cisco DS-C9148S-D12P8K9
Технические характеристики:
Extended Specification
Технические характеристики:
| Cisco MDS 9148S - switch - 48 ports - Managed - rack-mountable | |
| Device Type | Switch - 48 ports - Managed |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Fibre Channel |
| Ports | 12 x 8Gb Fibre Channel |
| Remote Management Protocol | RMON, SNMP 3, HTTP, SMI-S, SSH-2, CLI |
| Features | Auto-sensing per device, ISL support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), back to front airflow, Remote Switch Port Analyzer (RSPAN), role based access control, Registered State Change Notification (RSCN) support, SFTP client |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 43.59 cm x 41.5 cm x 4.37 cm |
| Weight | 9 kg |
| Manufacturer Warranty | 1 year warranty |
| Bundled Services | 1 year warranty |
| General | |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP, Active Directory |
| Device Type | Switch - 48 ports - Managed |
| Enclosure Type | Rack-mountable 1U |
| Encryption Algorithm | AES |
| Features | Auto-sensing per device, ISL support, Virtual Route Redundancy Protocol (VRRP) support, Access Control List (ACL) support, Quality of Service (QoS), back to front airflow, Remote Switch Port Analyzer (RSPAN), role based access control, Registered State Change Notification (RSCN) support, SFTP client |
| Fibre Channel | FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS, FC-BB-6 |
| Ports | 12 x 8Gb Fibre Channel |
| Remote Management Protocol | RMON, SNMP 3, HTTP, SMI-S, SSH-2, CLI |
| Subtype | Fibre Channel |
| Dimensions & Weight | |
| Depth | 41.5 cm |
| Height | 4.37 cm |
| Weight | 9 kg |
| Width | 43.59 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x 1000Base-T - RJ-45 - management ¦ 1 x serial (RS-232) - RJ-45 - management ¦ 1 x USB - Type A ¦ 12 x 8Gb Fibre Channel - LC multi-mode x 2 ¦ 36 x 16Gb Fibre Channel - SFP+ - Ports on Demand |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, EN50082-1, EN 61000-6-1, ACA TS001, AS/NZS 3260, EMC, ICES-003 Class A, FIPS 140-2, FCC CFR21 Part 1040, EN 60825, IEC 60825, CAN/CSA C22.2 No. 60950 |
| Power | |
| Installed Qty | 2 (installed) / 2 (max) |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 300 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| Software Included | Cisco Data Center Network Manager (DCNM) for SAN Advanced Edition, Cisco MDS 9000 Family Enterprise Package |
