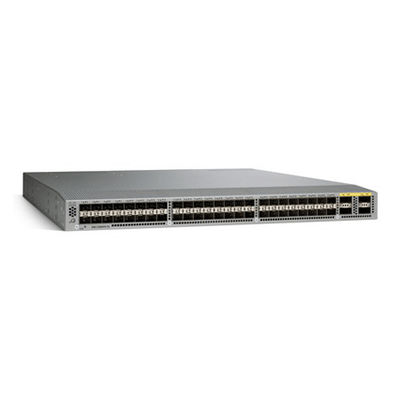

Коммутатор Cisco Nexus N3K-C3064PQ-10GE
265 037 р.
Управляемый коммутатор Layer3, 48 портов 100/1000/10GBase-X (SFP+/SFP), 4 порта QSFP+, N3K-LAN1K9, два блока питания AC
Технические характеристики
Технические характеристики
| Device Type | Switch - 64 ports - L3 - managed |
| Enclosure Type | Rack-mountable - 1U |
| Ports | 48 x SFP+ + 4 x QSFP+ |
| Performance | Switching capacity : 1.28 Tbps |
| Capacity | Virtual interfaces (VLANs) : 4096 Multiple Spanning Tree Protocol instances : 64 Rapid Spanning Tree Protocol instances : 512 |
| MAC Address Table Size | 128K entries |
| Jumbo Frame Support | 9216 |
| Routing Protocol | RIP-2, BGP, IGMPv2, VRRP, PIM-SM, IGMPv3, PIM-SSM, MSDP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI |
| Encryption Algorithm | AES |
| Authentication Method | RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2) |
| Features | Routing, layer 2 switching, VLAN support, Syslog support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Weighted Random Early Detection (WRED), Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Virtual Route Forwarding-Lite (VRF-Lite), Unicast Reverse Path Forwarding (URPF), Rapid Per-VLAN Spanning Tree Plus (PVRST+) |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Interfaces | 1 x console - RJ-45 - management 2 x 1000Base-T - RJ-45 - management 48 x SFP+ 4 x QSFP+ 1 x USB |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 0 (installed) / 2 (max) |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, FCC CFR47 Part 15, EN300-386, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1, GB 4943 |
| Approximate Width | 17.3 in |
| Approximate Depth | 19.9 in |
| Approximate Height | 1.7 in |
| Approximate Weight | 20.5 lbs |
| Min Operating Temperature | 32 |
| Max Operating Temperature | 104 |
| Humidity Range Operating | 10 - 85% (non-condensing) |
| Min Storage Temperature | 40 |
| Max Storage Temperature | 158 |
