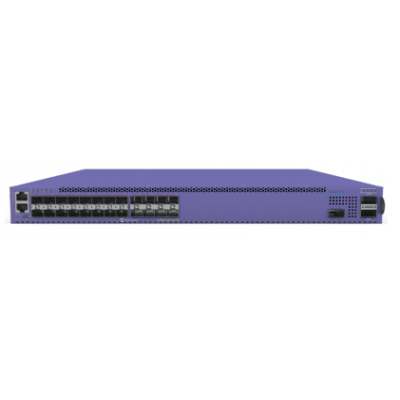

Коммутатор Extreme Summit X590-24X-1Q-2C

Коммутатор Extreme Summit X590-24X-1Q-2C ExtremeSwitching X590 base unit with 24 1Gb/ 10 Gb SFP+ port s, 110 Gb/40 Gb QSFP+ port,2 10 Gb/ 25Gb/40 Gb/ 50 Gb/ 10 0 Gb capable QSFP28 port s, 2 unpopulated power suppliesslot s, 4 unpopulated fan module slot s, ExtremeXOS Advanced Edge License

Port	24 1Gb/ 10 Gb SFP+ ports 1 10 Gb/40 Gb QSFP+ ports 2 10 Gb/ 25Gb/40 Gb/ 50 Gb/ 10 0 Gb QSFP28 ports 1x Serial console port RJ-45 1x 10/ 100/ 1000BASE-T out-of-band management port Micro-USB Type A storage port Selectable QSFP Port Configurations 1 10 Gb/40 Gb QSFP+ and 2 100 Gb QSFP28 SummitStack-V40 0 stacking ports or 2 10 Gb/ 25Gb/40 Gb/ 50 G
Power Supplies	Modular 770 W AC power supply (up to two PSUs) Modular 110 0 W DC power supply (up to two PSUs) Front-Back and Back-Front airflow options
Fan Modules	4 fan modules Front-Back and Back-Front airflow options
Dimensions	44.1cm / 48.8cm / 4.3cm
Performance	880 Gbps Switching Capacit y / 714Mpps Forwarding Rate
CPU Memory	2.4GHz Quad core CPU 4GB DDR3 ECC memory 32GB SSD memory
Packet Buffers	12MB
MTBF	435,074 hours
MAC Addresses	272K
IPv4 LPM Entries	256K max w/ALPM
IPv4 Hosts	with min LPM IPv4 entries: 146K with max LPM IPv4 entries: 3K
IPv6 LPM (/ 64) Entries	128K max w/ALPM
IPv6 Hosts	32K max
IP Multicast Groups	4K
IP Multicast (s,v,g) entries	130K max
Jumbo Frame	9216 Byte Max Packet Size
VLAN/ VMANs	4092 user-created
