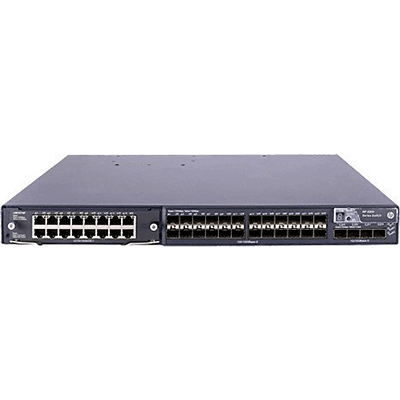

Коммутатор HPE 5800-24G-SFP, JC103B
285 194 р.
Коммутатор HPE 5800-24G-SFP Switch. JC103B
Технические характеристики:
Технические характеристики:
| Manufacturer part number | JC103B |
| Series | HPE 5800 Switch Series |
| Port and slots | |
| I/O ports and slots | 24 SFP fixed Gigabit Ethernet SFP ports 1 extended module slot 4 fixed 1000/10000 SFP+ ports |
| Aditional port and lots | 1 RJ-45 serial console port |
| Power supplies | |
| 2 power supply slots 1 minimum power supplies required (ordered separately) | |
| Memory and processor | |
| 2048 MB SDRAM; Packet buffer size: 8 MB, 512 MB flash | |
| Performance | |
| Latency | 4.02 µs (Store and Forward) (64-byte packets) |
| Throughput | up to 155 Mpps |
| Routing/Switching capacity | 208 Gbps |
| Routing table size | 16000 entries |
| MAC address table size | 32000 entries |
| Environment | |
| Operating temperature | 32°F to 113°F (0°C to 45°C) |
| Operating relative humidity | 10% to 90%, noncondensing |
| Acoustic | Low-speed fan: 49.6 dB, High-speed fan: 58.1 dB |
| Electrical characteristics | |
| Maximum heat dissipation | 498 BTU/hr (525.39 kJ/hr) |
| Frequency | 50/60 Hz |
| Voltage | 100 - 120 / 200 - 240 VAC, rated (depending on power supply chosen) |
| Safety | |
| UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance | |
| Emissions | |
| VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A | |
| Immunity | |
| Generic | ETSI EN 300 386 V1.3.3 |
| EN | EN 55024:1998+ A1:2001 + A2:2003 |
| ESD | EN 61000-4-2; IEC 61000-4-2 |
| Radiated | EN 61000-4-3; IEC 61000-4-3 |
| EFT/Burst | EN 61000-4-4; IEC 61000-4-4 |
| Surge | EN 61000-4-5; IEC 61000-4-5 |
| Conducted | EN 61000-4-6; IEC 61000-4-6 |
| Power frequency magnetic field | IEC 61000-4-8; EN 61000-4-8 |
| Voltage dips and interruptions | EN 61000-4-11; IEC 61000-4-11 |
| Harmonics | EN 61000-3-2, IEC 61000-3-2 |
| Flicker | EN 61000-3-3, IEC 61000-3-3 |
| Management | |
| IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; HTTPS; RMON1; FTP | |
| Protocols please refer to quickspecs for a full list of protocols | |
| Physical characteristics | |
| Dimensions | 17.32(w) x 16.81(d) x 1.72(h) in (44.0 x 42.7 x 4.36 cm) (1U height) |
| Weight | 18.74 lb (8.5 kg) |
