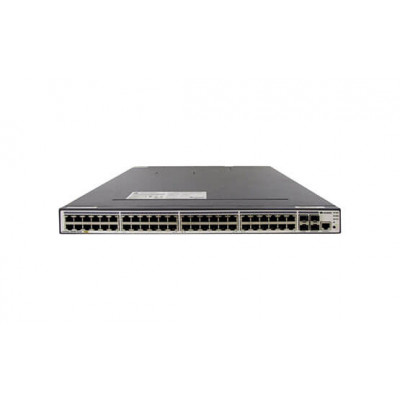

Коммутатор Huawei S3700-52P-PWR-EI, 02352373
145 770 р.
Huawei S3700-52P-PWR-EI Mainframe(48 FE RJ45,4 GE SFP,PoE,Dual Slots of power,Without Power Module).
- Need to purchase additional power W0PSA5000 or W0PSA2500
- POE Switch
- Layer 3 Ethernet Switch
- Port: 48 10/100 BASE-T, 2 100/1000 BASE-X, 2 SFP GE(1000 BASE-X)
- Software: Enhanced Version
- iStack intelligent stacking
- 16K MAC Address Entries
- Support RIP, IS-IS, BGP, OSPF
Технические характеристики:
| Общие характеристики | |
| Тип устройства | коммутатор (switch) |
| Возможность установки в стойку | есть |
| LAN | |
| Количество портов коммутатора | 48 x Ethernet 10/100 Мбит/сек |
| Размер таблицы MAC адресов | 16384 |
| Управление | |
| Консольный порт | есть |
| Web-интерфейс | есть |
| Поддержка Telnet | есть |
| Поддержка SNMP | есть |
| Дополнительно | |
| Поддержка IPv6 | есть |
| Поддержка стандартов | Auto MDI/MDIX, Power Over Ethernet, IEEE 802.1p (Priority tags), IEEE 802.1q (VLAN), IEEE 802.1d (Spanning Tree), IEEE 802.1s (Multiple Spanning Tree) |
| Дополнительная информация | 4 порта 1000Base-X SFP |
| Размеры (ШxВxГ) | 442 x 44 x 220 мм |
| Dimensions: width x depth x height | , 442 mm x 420 mm x 43.6 mm |
| Forwarding performance | , 13.2 Mpps |
| IP routing | , Static routing, RIPv1, RIPv2, and ECMP OSPF, IS-IS, and BGP |
| IPv6 features | , Neighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet Manually con?gured tunnel 6to4 tunnel ISATAP tunnel ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping |
| MAC address table | , IEEE 802.1d compliance 16K MAC address entries MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
| Management and maintenance | , iStack MAC Forced Forwarding (MFF) Remote configuration and maintenance using Telnet Auto-Config. Virtual cable test Ethernet OAM (IEEE 802.3ah and 802.1ag) Port mirroring and RSPAN (remote port mirroring) SNMPv1/v2/v3 and RMON MUX VLAN and GVRP Web NMS Auto-Config and HGMP SSHv2 System logs and alarms of different levels |
| Multicast | , 1K multicast groups IGMP v1/v2/v3 snooping and IGMP fast leave Multicast VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM |
| Operating environment | , Operating temperature: 0°C-50°C (long term); -5°C-55°C (short term) Relative humidity: 10%-90% (non-condensing) |
| Port | , Forty-eight 10/100Base-Tx ports,two 100/1000Base-X SFP ports, and two 1000Base-X SFP ports |
| Power consumption | ,
|
