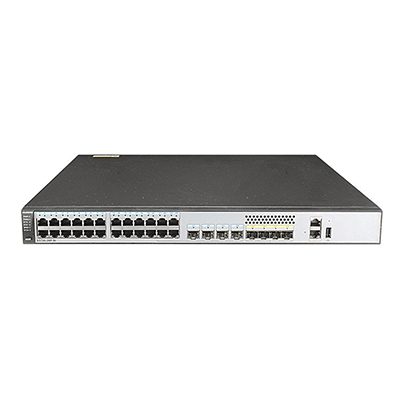

Коммутатор Huawei S5720-32C-HI-24S-AC, 02358600
285 961 р.
Коммутатор Huawei S5720-32C-HI-24S-AC S5720-32C-HI-24S-AC(24 Gig SFP,8 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP+,with 2 interface slots,with 600W AC power supply)
Технические характеристики:
Технические характеристики:
| Specifications | S5720-P-EI | S5720-X-EI | S5720-PC-EI | S5720-C-EI |
| Switching Capacity | 598 Gbit/s | |||
| Forwarding Performance | S5720-32P-EI-AC: 48 Mpps S5720-52P-EI-AC: 78 Mpps S5720-32X-EI-AC: 102 Mpps S5720-32X-EI-DC: 102 Mpps S5720-32X-EI-24S-AC: 102 Mpps S5720-32X-EI-24S-DC: 102 Mpps S5720-50X-EI-AC: 129 Mpps S5720-50X-EI-DC: 129 Mpps S5720-50X-EI-46S-AC: 129 Mpps S5720-50X-EI-46S-DC: 129 Mpps S5720-52X-EI-AC: 132 Mpps S5720-36PC-EI-AC: 78 Mpps S5720-56PC-EI-AC: 108 Mpps S5720-36C-EI-28S-AC: 132 Mpps S5720-36C-EI-28S-DC: 132 Mpps S5720-36C-EI-AC: 132 Mpps S5720-36C-EI-DC: 132 Mpps S5720-36C-PWR-EI-AC: 132 Mpps S5720-36C-PWR-EI-DC: 132 Mpps S5720-56C-EI-48S-AC: 162 Mpps S5720-56C-EI-48S-DC: 162 Mpps S5720-56C-EI-AC: 162 Mpps S5720-56C-EI-DC: 162 Mpps S5720-56C-PWR-EI-AC: 162 Mpps S5720-56C-PWR-EI-DC: 162 Mpps S5720-56C-PWR-EI-AC1: 162 Mpps | |||
| Extended Slot | N/A | One extended slot supporting a service subcard or stack card | ||
| DRAM and Flash Memory | SDRAM: 2 GB Flash: 340 MB | |||
| MAC Address Table | 64k | |||
| VLAN | 4k | |||
| IP Routing | Static route, RIPv1, RIPv2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy | |||
| Security | Hierarchical user management and password protection AAA authentication DHCP relay, DHCP server, DHCP snooping, DHCP security, and SAVI Port isolation, port security, and sticky MAC NAC and user management based on user groups Limit on the number of learned MAC addresses CPU defense Blacklist and whitelist MACSec ready | |||
| Super Virtual Fabric (SVF) | Working as an SVF client that is plug-and-play with zero configuration Automatically loading the system software and patching on the client One-click and automatic delivery of service configurations Independent running clients | |||
| Interoperability | VBST (Compatible with PVST/PVST+/RPVST) LNP (Similar to DTP) VCMP (Similar to VTP) | |||
| Energy saving | 802.3az Energy Efficient Ethernet (EEE) supported | |||
