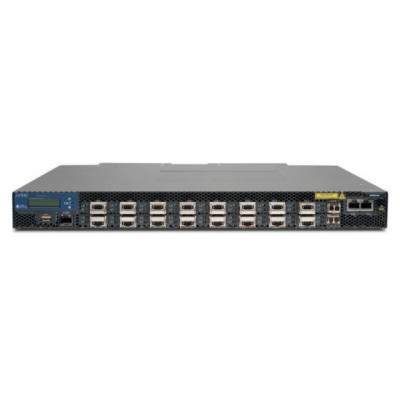

Коммутатор серии QFX QFX3600 – 16 port QSFP+ Switch with three FANs . ( FRU Side to Port Side Air Flow) and redundant AC power supplies
Технические характеристики
Технические характеристики
| Subtype | 40 Gigabit Ethernet |
| Ports | 16 x 40 Gigabit QSFP+ |
| Manufacturer | Juniper Networks, Inc. |
| Subcategory | network hubs and switches |
| Subtype | 40 Gigabit Ethernet |
| Form Factor | rack-mountable |
| Type | switch |
| Features | High Availability, back to front airflow, hot swap module replacement, redundant hot swappable fans |
| Ports Qty | 16 |
| Manageable | Yes |
| Nominal Voltage | AC 120/230 V |
| Frequency Required | 50/60 Hz |
| Power Consumption Operational | 345 Watt |
| Type | internal power supply |
| Hot-Plug | hot-plug |
| Qty | 1, 16, 2 |
| Comments | management |
| Power Redundancy | yes |
| Power Redundancy Scheme | 1+1 |
| Max Supported Qty | 2 |
| MTBF | 87000 hour(s) |
| Height (Rack Units) | 1 m |
| Built-in Devices | status LCD |
| OS Required | JUNOS |
| Humidity Range Storage | 0 - 95% (non-condensing) |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Brand | Juniper |
| Product Line | Juniper QFX Series |
| Model | QFX3600-I QFabric Interconnect |
| Packaged Quantity | 1 |
| Compatibility | PC |
| Depth | 19.4 in |
| Width | 17 in |
| Height | 1.7 in |
| Weight | 30.86 lbs |
| Type | 40 Gigabit QSFP+ |
| Qty | 16 |
| Type | port-to-port latency, switching capacity |
| Value | 1.28 Tbps, 3 µs |
| Manufacturer | Juniper Networks, Inc. |
