6 342 р.

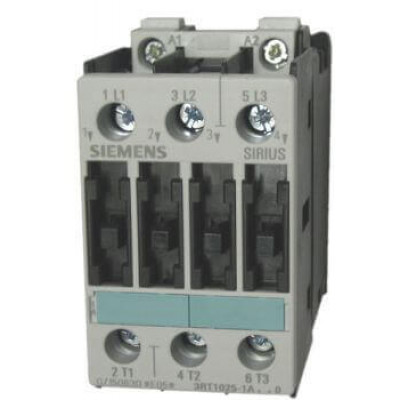

Контактор Siemens 3RT1025-1BB40

Производитель: SIEMENS
Код Товара: 89840-83
Уточняйте наличие
6 342 р.
Купить в один клик
Контактор Siemens 3RT1025-1BB40
Product brand name
SIRIUS
Product designation
power contactor
General technical data
Size of contactor
S0
Degree of pollution
3
Protection class IP
on the front
IP20
of the terminal
IP00
Mechanical service life (switching cycles)
of contactor typical
10 000 000
of the contactor with added electronicscompatible auxiliary switch block typical
5 000 000
of the contactor with added auxiliary switch block typical
10 000 000
Reference code acc. to DIN EN 81346-2
Q
Ambient conditions
Installation altitude at height above sea level
maximum
2 000 m
Ambient temperature
during operation
25 ... +60 °C
Main circuit Number of poles
Number of poles for main current circuit
3
Number of NO contacts for main contacts
3
Number of NC contacts for main contacts
0
Operating current
at AC-1 at 400 V
— at ambient temperature 40 °C rated value40 A
at AC-1
— up to 690 V at ambient temperature 40 °C rated value
40 A
— up to 690 V at ambient temperature 60 °C rated value
35 A
at AC-3
— at 400 V rated value
17 A
at AC-4 at 400 V rated value
15.5 A
Operating current
at 1 current path at DC-1
— at 24 V rated value
35 A
— at 110 V rated value
4.5 A
with 2 current paths in series at DC-1
— at 24 V rated value
35 A
— at 110 V rated value
35 A
with 3 current paths in series at DC-1
— at 24 V rated value
35 A
— at 110 V rated value
35 A
Operating current
at 1 current path at DC-3 at DC-5
— at 24 V rated value
20 A
— at 110 V rated value
2.5 A
with 2 current paths in series at DC-3 at DC-5
— at 24 V rated value
35 A
— at 110 V rated value
15 A
with 3 current paths in series at DC-3 at DC-5
— at 24 V rated value
35 A
— at 110 V rated value
35 A
Operating power
at AC-1
— at 400 V rated value
23 kW
at AC-2 at 400 V rated value
7.5 kW
at AC-3
— at 400 V rated value
7.5 kW
— at 500 V rated value
10 kW
— at 690 V rated value
11 kW
Power loss [W] at AC-3 at 400 V for rated value of the operating current per conductor
0.9 W
Control circuit/ Control
Type of voltage of the control supply voltage
DC
Control supply voltage at DC
rated value
24 V
Operating range factor control supply voltage rated value of magnet coil at DC
initial value
0.8
Full-scale value
1.1
Closing power of magnet coil at DC
5.4 W
Holding power of magnet coil at DC
5.4 W
Auxiliary circuit
Number of NC contacts for auxiliary contacts
instantaneous contact
0
Number of NO contacts for auxiliary contacts
instantaneous contact
0
Operating current at AC-12 maximum
10 A
Operating current at AC-15
at 230 V rated value
6 A
at 400 V rated value
3 A
Operating current at DC-12
at 60 V rated value
6 A
at 110 V rated value
3 A
at 220 V rated value
1 A
Operating current at DC-13
at 24 V rated value
10 A
at 60 V rated value
2 A
at 110 V rated value
1 A
at 220 V rated value
0.3 A
Contact reliability of auxiliary contacts
1 faulty switching per 100 million (17 V, 1 mA)
Short-circuit protection
Design of the fuse link
for short-circuit protection of the main circuit
— with type of coordination 1 required
fuse gL/gG: 63 A
— with type of assignment 2 required
fuse gL/gG: 25 A
for short-circuit protection of the auxiliary switch required
fuse gL/gG: 10 A
Installation/ mounting/ dimensions
Mounting type
screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
Side-by-side mounting
Yes
Height
85 mm
Width
45 mm
Depth
101 mm
