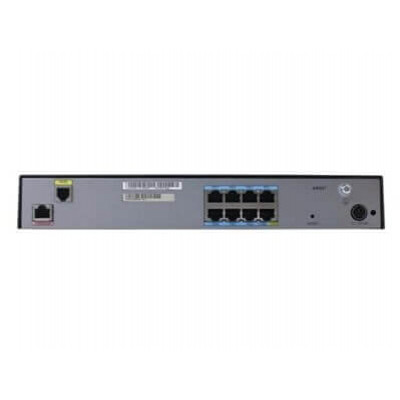

Маршрутизатор Huawei AR207

Маршрутизатор AR207
WAN speed with services (IMIX): 150 Mbps
Fixed ports: 8 x FE LAN(can be configured as WAN interfaces), 1 x ADSL2+ Annex A/M
Dimensions (H x W x D): 44.0 mm x 300.0 mm x 216.4 mm(1.73 in. x 11.8 in. x 8.5 in.)

WAN speed with services* (IMIX)	150 Mbps
Number of recommended users	50
Fixed WAN ports	1 x ADSL2+ Annex A/M
Fixed Ethernet switching ports	8 x FE(can be configured as WAN interfaces)
USB 2.0 ports	1
Console ports	1
Memory size	512 MB
Flash memory	512 MB
Maximum power	36 W
Power supply (AC)	100 V to 240 V
Frequency	50/60 Hz
Dimensions (H x W x D)	44.0 mm x 300.0 mm x 216.4 mm (1.73 in. x 11.8 in. x 8.5 in.)
Operating temperature	0?C to 45?C
Relative humidity	5% to 95% (non-condensing)
Basic features	DHCP server/client, PPPoE server/client, PPPoA server/client, PPPoEoA server/client, NAT, Sub interface management
WLAN(AC)	AP management(AC discovery/AP access/AP management),CAPWAP,WLAN user management , WLAN radio management(802.11a/b/g/n),WLAN QoS(WMM), WLAN security(WEP/WPA/WPA2/Key management)
LAN	IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.
IPv4 unicast routing	Routing policy, static route, RIP, OSPF, IS-IS, BGP
IPv6 unicast routing	Routing policy, static route, RIPng, OSPFv3, IS-ISv6, BGP4+
Multicast	IGMP version1/2/3, PIM SM, PIM DM, MSDP
VPN	IPSec VPN, GRE VPN, DSVPN, L2TP VPN
QoS	Diffserv mode, Priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP+WRR; WAN interface: PQ/CBWFQ), MQC (traffic classification, traffic behavior, and traffic policy), HierarchicalQoS, Smart Application Control (SAC)
Security	ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, CPCAR, blacklist, IP source tracing, PKI,
Management and maintenance	Upgrade management, device management, web-based GUI, GTL, SNMP(v1/v2c/ v3), RMON, NTP, CWMP, Auto-Config, site deployment using USB disk, CLI, SSH (v1/ v2)
