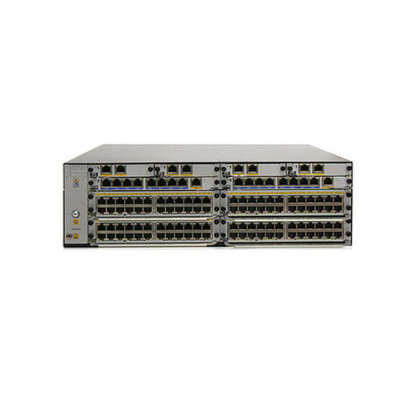

Маршрутизатор Huawei AR3260 AR0M0036SD00, 02353545
355 708 р.
Маршрутизатор Huawei AR3260 AR0M0036SD00 02353545
Технические характеристики:
| 3G | CDMA 2000 EV-DO Rev A, WCDMA, individual 3G uplink/backup link |
| Basic feature | DHCP server/client, PPPoE server/client, PPPoA client, PPPoEoA client, NAT, Sub interface management |
| DC power | -48 V~-60 V |
| Device switching capacity | 160Gbps |
| Dimensions (width x depth xheight) | 130.5 mm x 442 mm x 470 mm |
| DSP slots | 3 |
| Firewall performance (large packets) | 5.5 Gbps (SRU40), 6 Gbps (With SRU60), 9.5 Gbps (With SRU80) |
| Fixed WAN ports | 3*GE (two combo port) |
| Flash memory | 16 MB |
| Forwarding capacity | 2 Mpps (SRU40), 2.5 Mpps (With SRU60), 4 Mpps (SRU80) |
| Frequency | 50/60 Hz |
| IPv4 unicast routing | Routing policy, static route, RIP, OSPF, IS-IS, BGP |
| IPv6 unicast routing | Routing policy, static route, RIPng, OSPFv3, IS-ISv6, BGP4+ |
| LAN | IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP |
| Management and maintenance | Upgrade management, device management, GTL, SNMP(v1/v2c/v3), NTP, CWMP, Auto-Config, deployment using USB disk, NetConf, CLI |
| Maximum power | 350 W (single power module)/700 W (dual power module) |
| Memory | 2 GB |
| Micro SD (default/max) | 2 GB/4 GB |
| Mini-USB ports | 1 |
| MPLS | LDP, MPLS L3 VPN, static LSP, dynamic LSP |
| Multicast | IGMP V1/V2/V3, IGMP-Snooping V1/V2/V3, PIM SM, PIM DM, MSDP |
| Operating temperature | 0°C to 40°C |
| Power supply(AC) | 100V to 240V |
| QoS | Diffserv mode, MPLS QoS, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCP WRED), congestion management (LAN interface: SP/WRR/SP+WRR; WAN interface: PQ/CBWFQ), MQC (traffic classifier, traffic behavior, and traffic policy), HQoS, FR QoS |
| Relative humidity | 5% to90% (noncondensing) |
| Security | ACL, firewall, 802.1x authentication, MAC address authentication, Web authentication, AAA authentication, RADIUS authentication, HWTACACS authentication, broadcast storm suppression, ARP security, ICMP attack defense, URPF, IP Source Guard, DHCP snooping, CPCAR, blacklist, IP source tracing |
| SIC slots | 4 |
| Slot switching bandwidth | SIC slots: 2 Gbps WSIC slots: 5 Gbps XSIC & EXSIC slots: 20 Gbps |
| USB 2.0 ports | 2 |
| Voice | RTP, SIP, SIP AG, IP PBX/TDM PBX, FXO/FXS, VoIP/conference call |
| VPN | IPSec VPN, GRE VPN, DSVPN, SSL VPN, L2TP VPN |
| WAN speed with services | 600 Mbps (SRU40), 800 Mbps (With SRU60), 1800 Mbps (SRU80) |
| Weight | 11 KG |
| WLAN(AC) | AP management(AC discovery/AP access /AP management),CAPWAP,WLAN user management , WLAN radio management(802.11a/b/g/n, WLAN QoS(WMM), WLAN security(WEP/WPA/WPA2/Key management) |
| WSIC slots | 2 |
