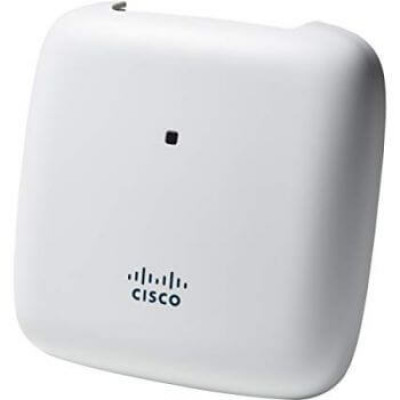

Точка доступа Cisco AIR-AP1815i-H-K9
19 529 р.
Integrated antennas | ? 2.4 GHz, gain 2 dBi ? 5 GHz, gain 4 dBi |
Interfaces | ? 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) ? Management console port (RJ-45) |
System | ? 1 GB DRAM ? 256 MB flash ? 710 MHz quad core |
Power draw | ? 8.3W (maximum, on PoE) |
Environmental | ? Operating ? Temperature: 32° to 104°F (0° to 40°C) ? Humidity: 10% to 90% (noncondensing) ? Max. altitude: 9843 ft (3000 m) @ 40°C ? Nonoperating (storage and transportation) ? Temperature: -22° to 158°F (-30° to 70°C) ? Humidity: 10% to 90% (noncondensing) ? Max. altitude: 15,000 ft (4500 m) @ 25°C |
Maximum number of non-overlapping channels | H (H regulatory domain): ? 2.412 to 2.472 GHz; 13 channels ? 5.180 to 5.320 GHz; 8 channels ? 5.745 to 5.825 GHz; 5 channels |
Authentication and security | ? Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2) ? 802.1X, RADIUS authentication, authorization, and accounting (AAA) ? 802.11r ? 802.11i |
Maximum clients | ? Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point |
802.11ac | ? 2x2 single-user/multiuser MIMO with two spatial streams ? Maximal ratio combining (MRC) ? 20-, 40- and 80-MHz channels ? PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz) ? Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) ? 802.11 Dynamic Frequency Selection (DFS) ? Cyclic shift diversity (CSD) support |
Ethernet ports | ? Authentication with 802.1X or MAC filtered ? Dynamic VLAN or per port ? Traffic locally switched or tunneled back to wireless LAN controller |
Bluetooth (future availability) | ? Integrated Bluetooth 4.1 (including BLE) radio ? Maximum transmit power: 4 dBm ? Antenna gain: 2 dBi |
Dimensions (W x L x H) | 150.8 x 150.8 x 33 mm |
