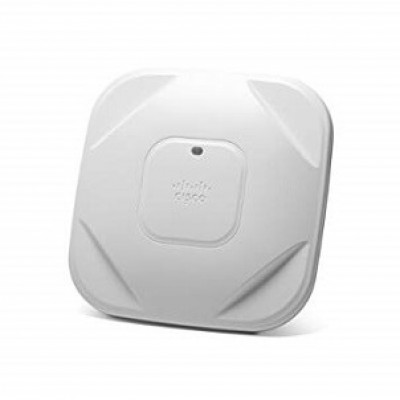

Точка доступа Cisco AIR-CAP1602I-H-K9
18 832 р.
Точка доступа AIR-CAP1602I-x-K9 Dual-band controller-based 802.11a/g/n Indoor environments, with internal antennas
| Software | ? Cisco Unified Wireless Network Software (available in Q4CY12) ? Cisco IOS® Software Release(available in Q4CY12) |
| 802.11n | ? 3 x 3 multiple-input multiple-output (MIMO) with two spatial streams ? Maximal ratio combining (MRC) ? 20- and 40-MHz channels ? PHY data rates up to 300 Mbps ? Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ? 802.11 dynamic frequency selection (DFS) (Bin 5) ? Cyclic shift diversity (CSD) support |
| Data Rates Supported | 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps |
| Maximum Number of Nonoverlapping Channels | 2.4 GHz ? 802.11b/g: ? 20 MHz: 3 ? 802.11n: ? 20 MHz: 35 GHz? 802.11a: ? 20 MHz: 24 ? 802.11n: ? 20 MHz: 24 ? 40 MHz: 11 |
| Maximum Total Transmit Power | 2.4 GHz ? 802.11b ? 22 dBm (3 antennas enabled) ? 802.11g ? 22 dBm (3 antennas enabled) ? 802.11n (HT20) ? 22 dBm (3 antennas enabled)5 GHz? 802.11a ? 22 dBm (3 antennas enabled) ? 802.11n non-HT duplicate mode ? 22 dBm (3 antennas enabled) ? 802.11n (HT20) ? 22 dBm (3 antennas enabled) ? 802.11n (HT40) ? 22 dBm (3 antennas enabled) |
| Integrated Antenna | ? 2.4 GHz, gain 4.0 dBi, horizontal beamwidth 360° ? 5 GHz, gain 4.0 dBi, horizontal beamwidth 360° |
| Interfaces | ? 10/100/1000BASE-T autosensing (RJ-45) ? Management console port (RJ-45) |
| Indicators | ? Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
| Dimensions (W x L x H) | 22.1 x 22.1 x 4.7 cm |
| Weight | 0.86 kg |
| Environmental | Cisco Aironet 1600i ? Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C) ? Nonoperating (storage) Altitude Test -25°C, 15,000 ft. ? Operating temperature: 32 to 104°F (0 to 40°C) ? Operating humidity: 10 to 90% percent (noncondensing) ? Operating Altitude Test -40°C, 9843 ft. |
| System Memory | ? 256 MB DRAM ? 32 MB flash |
| Input Power Requirements | ? AP1600: 44 to 57 VDC ? Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz |
| Powering Options | ? 802.3af Ethernet Switch ? Cisco AP1600 Power Injectors (AIR-PWRINJ4=, AIR-PWRINJ5=) ? Cisco AP1600 Local Power Supply (AIR-PWR-B=) |
| Power Draw | ? AP1600: 12.95 W |
